Gable Roof Terminology

When I first stepped onto a residential framing site nearly fifteen years ago, the gable roof was the very first roof system I learned to read, measure, and critique. It looked simple. Two slopes. One ridge. End of story.
I was wrong—spectacularly wrong.

Understanding Gable Roof Terminolog (yes, even the misspelled versions clients search for) is the foundation of good roof design, accurate planning, and long-lasting construction. This guide breaks it down with real-world clarity, field experience, and lessons learned the hard way.

What Is a Gable Roof?

So, what is a gable roof exactly?
A gable roof is a roof system with two sloping sides that meet at a ridge, forming a triangular wall section at each end—called the roof gable.

I’ve worked on hundreds of homes, and I can tell you firsthand: gable roofs dominate residential construction because they’re efficient, predictable, and cost-effective. They also ventilate extremely well when detailed correctly.

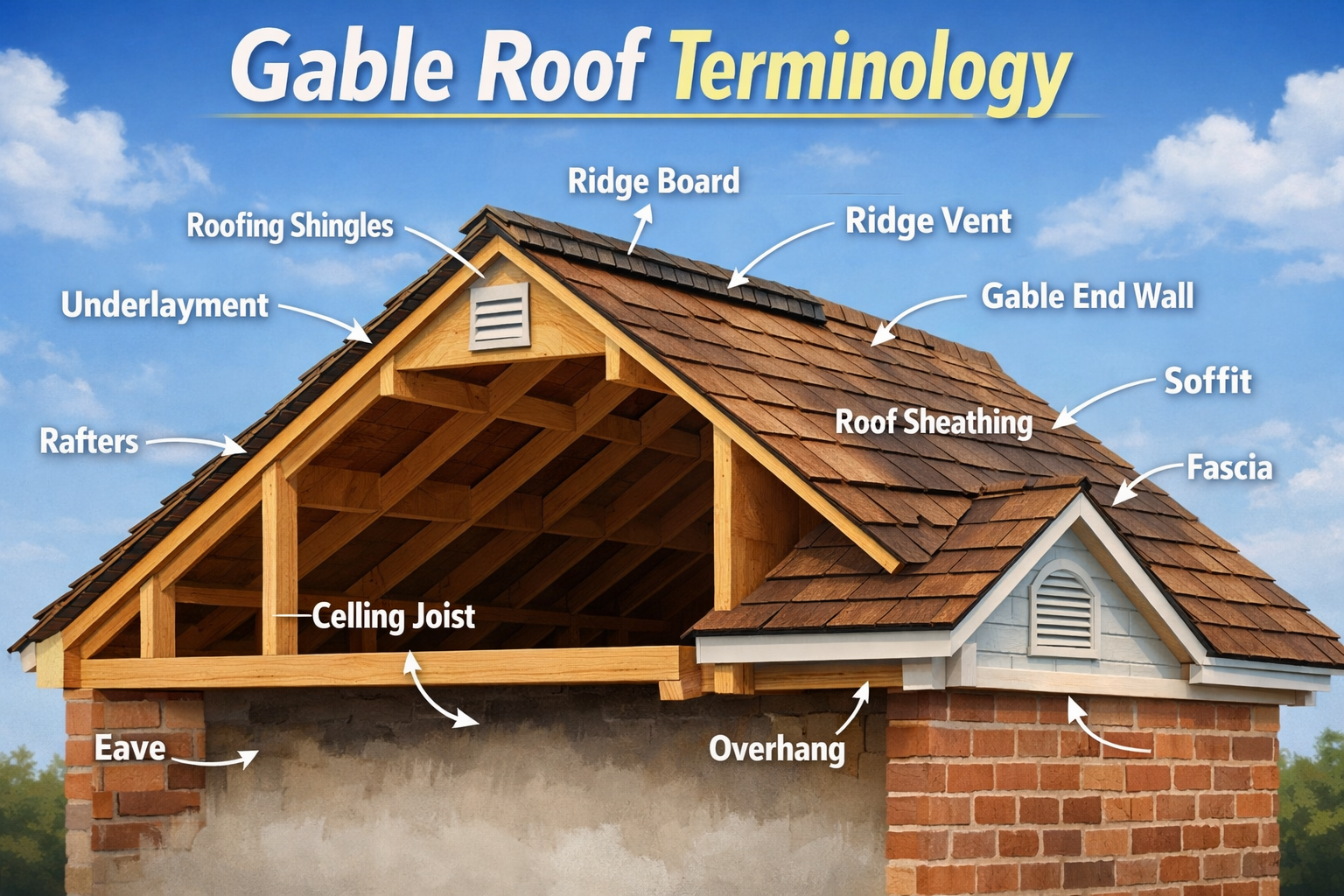

The Gable in Roof Anatomy (Core Terminology)

Understanding gable in roof systems means knowing the language builders actually use on-site.

Here are the essential parts of a gable roof structure:

Ridge Board
This is the horizontal board where the two roof planes meet.
I once inspected a renovation where the ridge was undersized—three years later, it sagged visibly.

Rafters
These sloped framing members run from ridge to wall plate.
Spacing matters more than most DIY guides admit.

Wall Plate
Sits on top of the wall and supports the rafters.
Improper anchoring here is a wind-failure waiting to happen.

Gable End Wall
The triangular vertical wall beneath the gable.
In high-wind zones, this wall needs extra bracing—non-negotiable.

Gabled Roof vs Other Roof Types

A gabled roof differs from hip or flat roofs primarily in load distribution.

From experience, gable roofs shed water and snow better than flat systems. However, they’re more vulnerable to uplift forces if the gable roof design ignores wind exposure.

I’ve personally seen hurricane damage where the roof survived—but the gable end didn’t.

Gable Roof Plan: Reading and Creating One

A gable roof plan shows the roof layout from above, including ridge location, slopes, and overhangs.

When reviewing plans for clients, I always check three things first:

• Ridge alignment with load-bearing walls

• Symmetry of slopes

• Overhang consistency

Mistakes here cascade into framing, sheathing, and even drainage failures later.

Gable Roof Dimensions That Actually Matter

Gable roof dimensions aren’t just numbers—they dictate performance.

Key dimensions include:

• Roof pitch (rise over run)

• Span between walls

• Ridge height

On one custom build, increasing pitch from 6:12 to 8:12 improved attic ventilation and resale value. Small change. Big payoff.

Gable Roof Section Detail (Where Pros Separate Themselves)

A gable roof section detail is a cut-through drawing showing layers.

This includes:

• Roofing material

• Underlayment

• Sheathing

• Rafters

• Insulation

• Ventilation paths

I always tell younger designers: if your section detail is weak, your building will be weaker. Period.

Gable Roof Designs: More Than Just Looks

Modern gable roof designs range from classic colonial to sharp contemporary profiles.

I’ve worked on:

• Cross gable roofs

• Front-facing gable roofs

• Dutch gable roofs

Each design impacts drainage, daylighting, and framing complexity. Aesthetic decisions always have structural consequences—whether clients realize it or not.

Common Gable Roofs (And Where They Fail)

Not all gable roofs perform equally.

Common issues I’ve seen repeatedly:

• Poor gable-end bracing

• Incorrect rafter ties

• Inadequate hurricane straps

Most failures aren’t material-related. They’re terminology-related—people didn’t understand what they were building.

Roof Gable Ventilation (Often Ignored)

Ventilation at the roof gable is critical.

Gable vents, ridge vents, or both—this decision affects moisture control.
I once diagnosed mold caused solely by blocked gable vents. No leaks. Just trapped air.

Gable Roof Structure in Real Conditions

A gable roof structure must respond to climate.

In snow regions, steeper pitches reduce load.
In hot climates, extended overhangs protect walls.

Design isn’t theoretical. It’s environmental problem-solving.

Final Advice From the Field

If there’s one thing I’ve learned after years on ladders, drawings, and inspections, it’s this:
Terminology isn’t academic—it’s practical survival.

Knowing gable roof terminology, understanding a gable roof plan, reading a gable roof section detail, and respecting gable roof dimensions will save money, time, and structural headaches.
